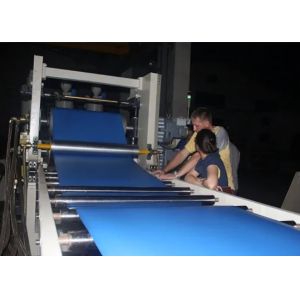

pp pe sheet making machine for packing construction Introduction:
This line specially used for producing PP/PE/PS/ABS single layer or multi-layer sheet or plate, suitable in the fields of packing, stationery, chemicals, construction, household appliances and so on.

Sheet specifications:
Usual sheet width: 700,900,1020,1200,1300,1400,1500,1700,1800,2100,2200mm
Usual sheet thickness: 0.5-2mm, 1.5-10mm, 6-20mm,3-30mm

Main technical data:

1,Extruder: Screw adopts special mixing function and high plasticizing capacity design, famous imported world-known thermocontrollers,electronics, hard gear surface gearbox to ensure high effective material extrusion capacity.

2,T-type die head: excellent mould special steel 5CrNiMo, suitable compression ratio to ensure uniform flow stability. Using a special double flow design which allows more precise adjustment to sheet thickness. Temperature control of plus or minus 1 ºC can accurately control the plasticizing process and sheet thickness.

3,Three roller calendar: According to the material properties, adopting vertical three-roller, oblique three-roller, horizontal three-roller calendar. Internal roller temperature control adopts a unique flow channel, so that the stability if uniform distribution roller. The independent oil temperature control for three roller calendar to ensure more stable and exact control.

4,Cooling frame: according to product specifications, configure with different specifications of stainless steel cooling roller.

5,Edge cutting device: trimming can be manual or automatic. Both the position of the edge trimmer and the width of trimming sheet can be adjustable.

6,Cutting machine: it can be divided into saw cutting or knife cutting. Thin type and non-friable type sheet usually adopt knife cut, adopting high quality alloy cutting tools, sharp and durable. Thick type sheet usually use saw cutting.

7,Winder: torque motor driving. The winding speed can be automatically controlled according to the tension. Portable airshaft, easy and convenient operation.


pp pe sheet making machine for packing construction main data:

Qingdao Tengao Plastic Machinery Co., Ltd. is one of the best proffesional manufacturer for plastic mat extrusion machine in China, manufactured over 100 production lines. Exported to many countries, such as Korea, India, Russia, Pakistan and so on.

Our main machinery product: PVC coil door mat extrusion line, PVC coil car mat production line, PVC S type floor mat production line, PVC calendaring molding mat manufacturing machine, LDPE grass mat extruder machine.

Our aim is to be the most Professional PVC Mats Manufacturer in China! Making the best Quality Machine to each customers!

Q & A:

Q: Why do you say that you are the most professional PVC Mats manufacturer?

A: We pay all our attention to PVC Mats machines.We offer 7/24 hours service. Customers' requirement is always the motive power to move on!

Q: Do you offer Turn-key project?

A: Yes.Once cooperated, we will offer the PVC mats formula for customers, then customers can send engineers to our factory, we will arrange the factories to operate the working machines.After machine shipped to customers' factory, we will dispatch engineer to test the machine and train the workers until they can operate the machine freely.

Q: Could I check the machine before shipment?

A: Yes. We will test all the machines for customers before shipment.
